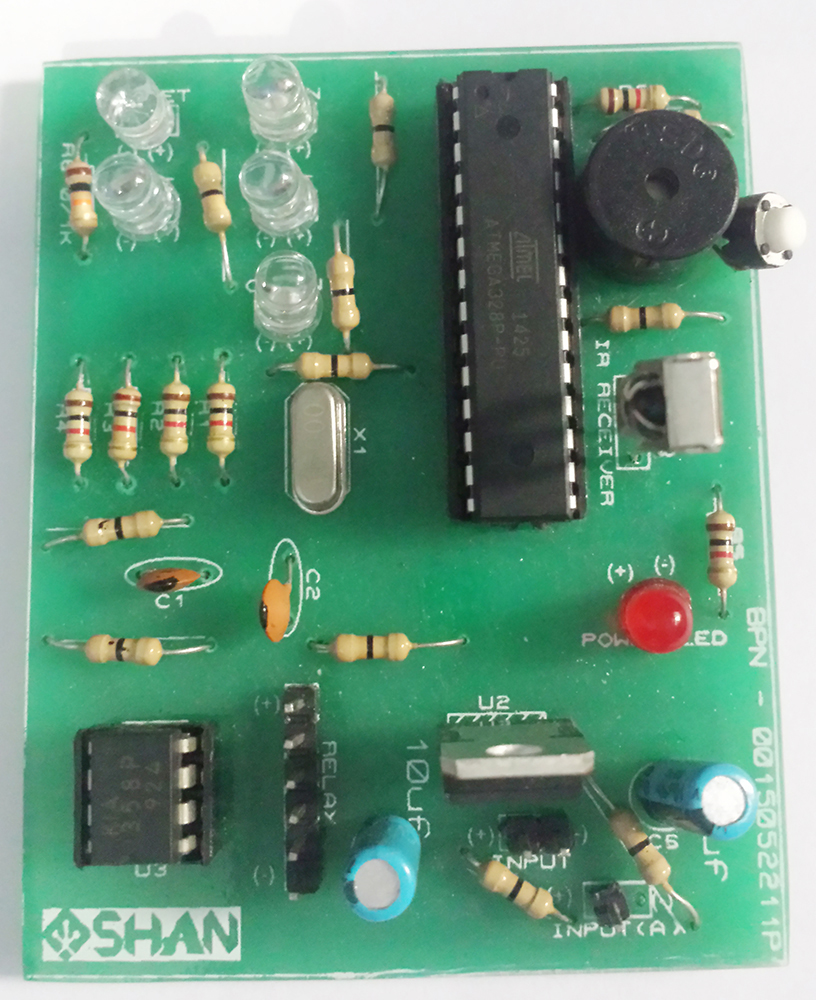

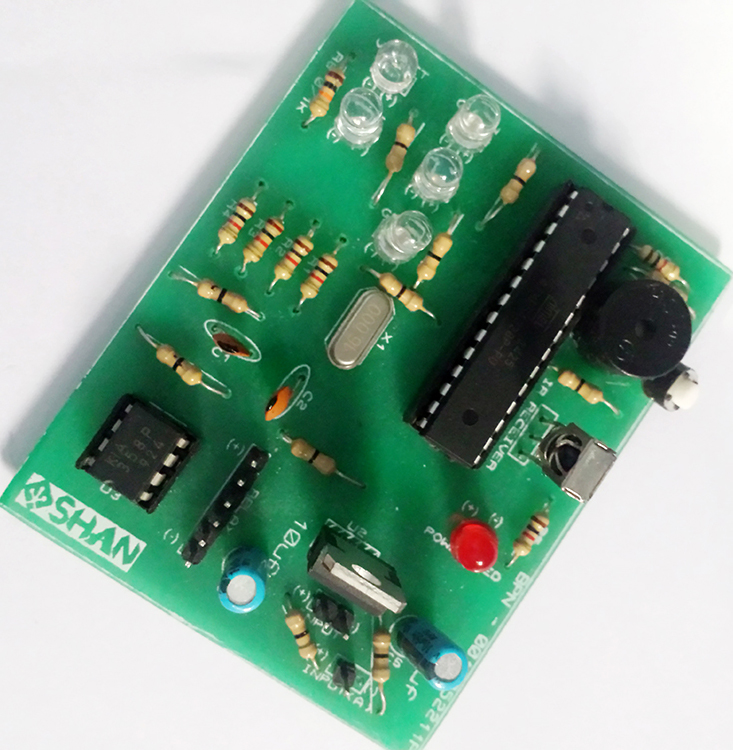

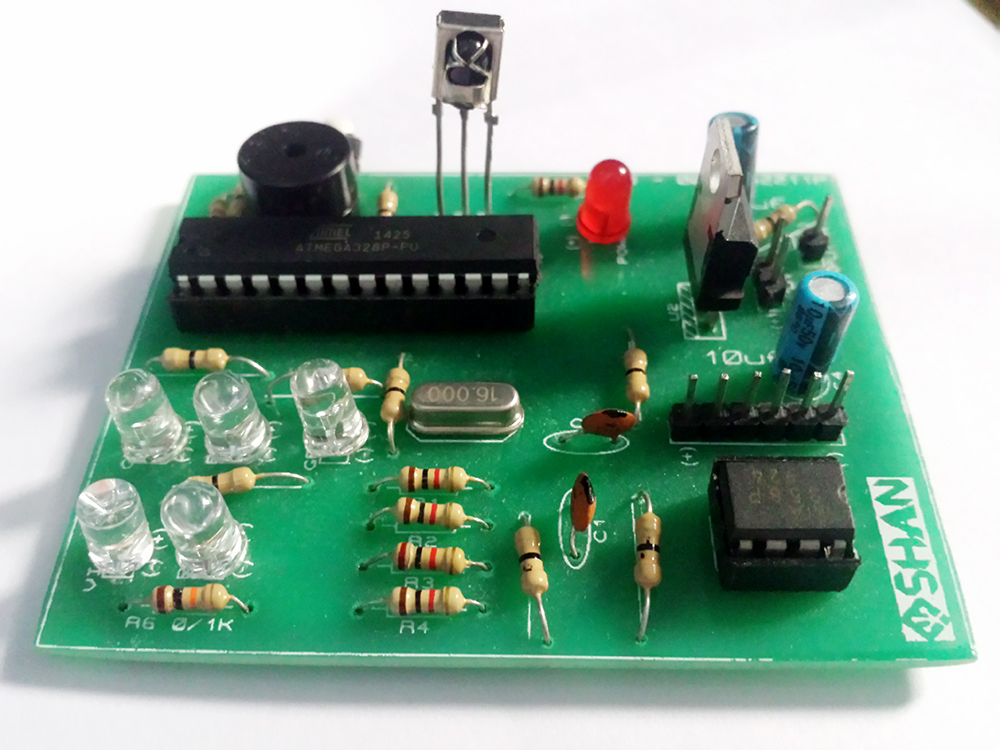

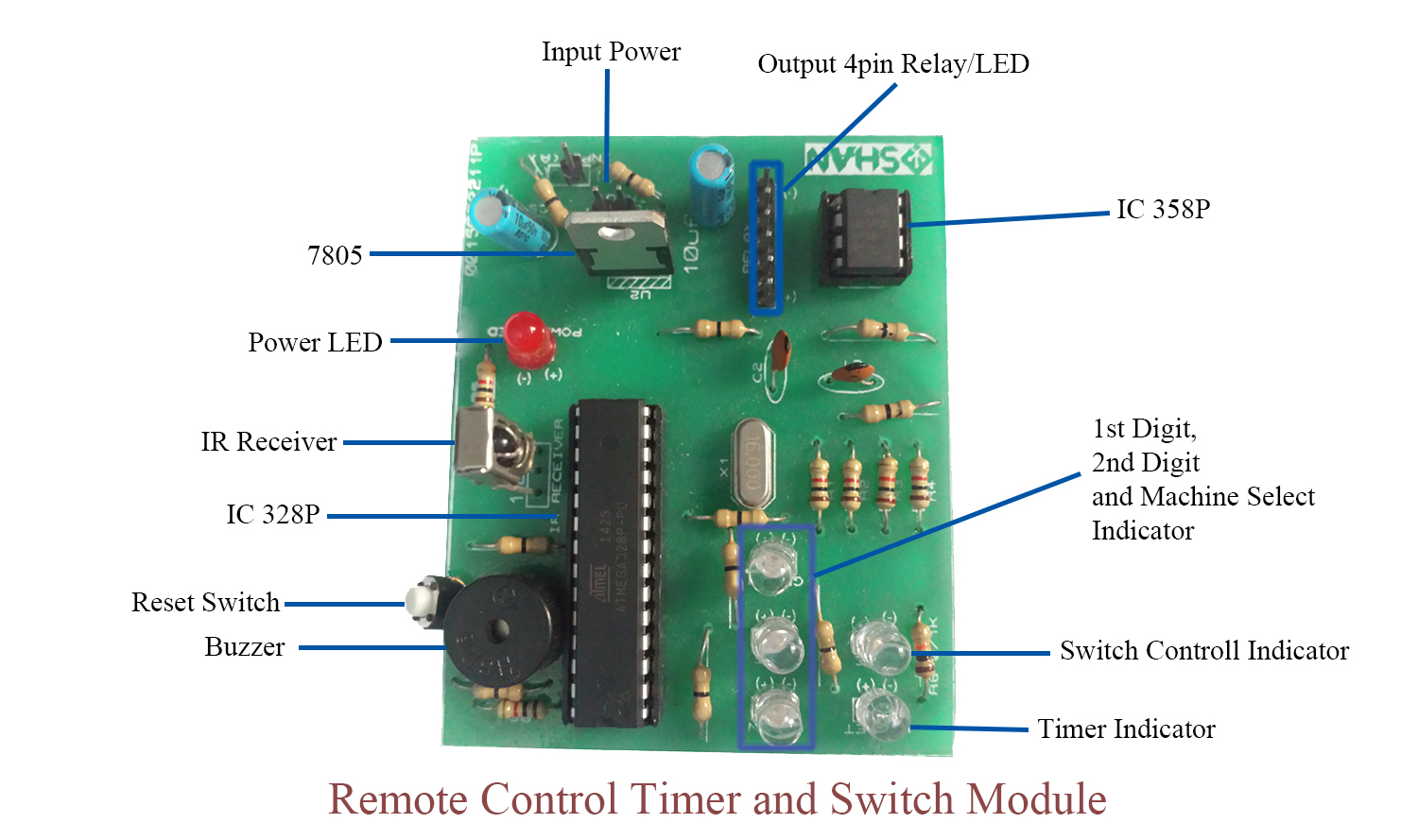

Remote Control Timer and Switch Module
By: Shanjedul Hassan

Shanjedul Hassan Remote control Device

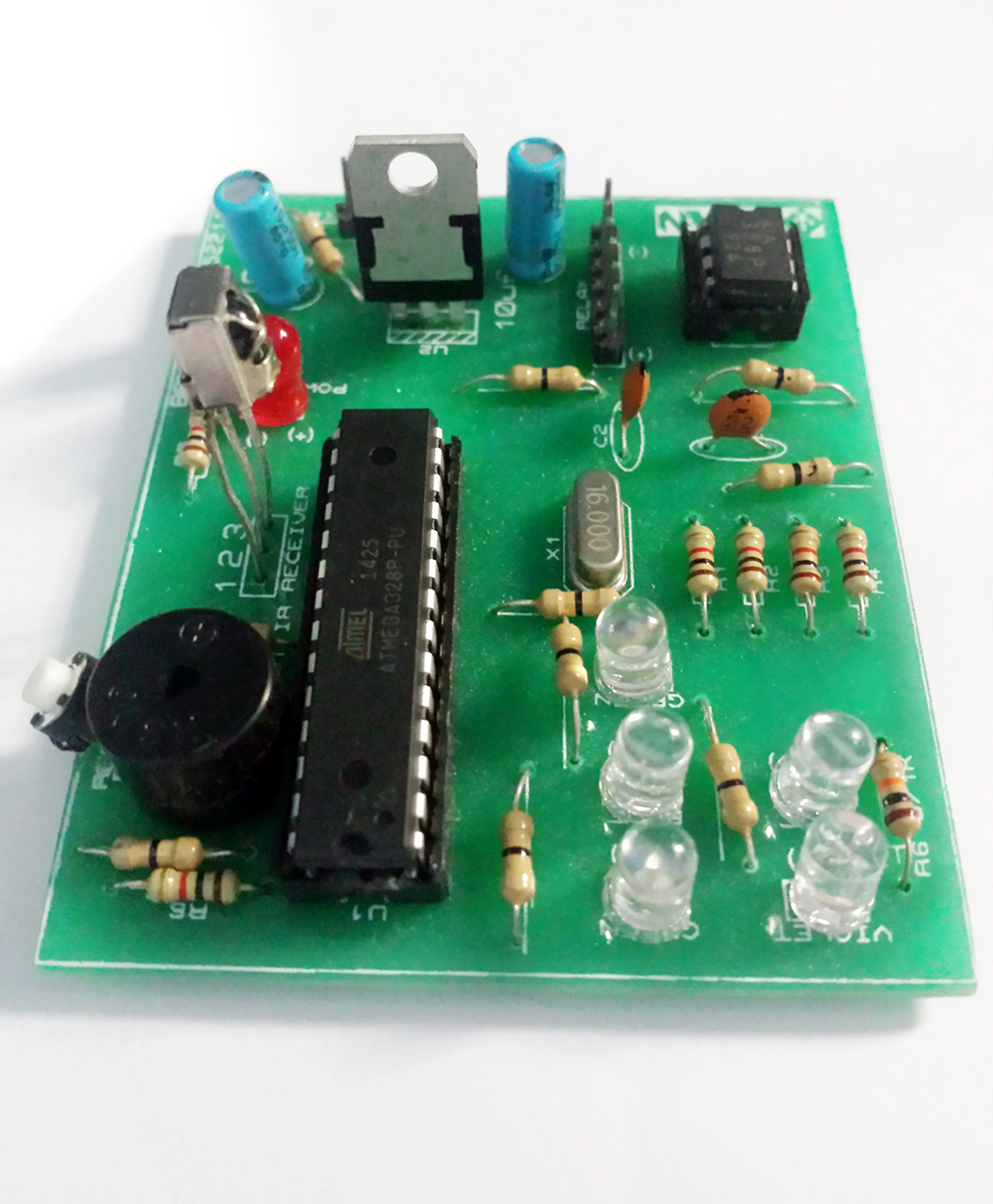

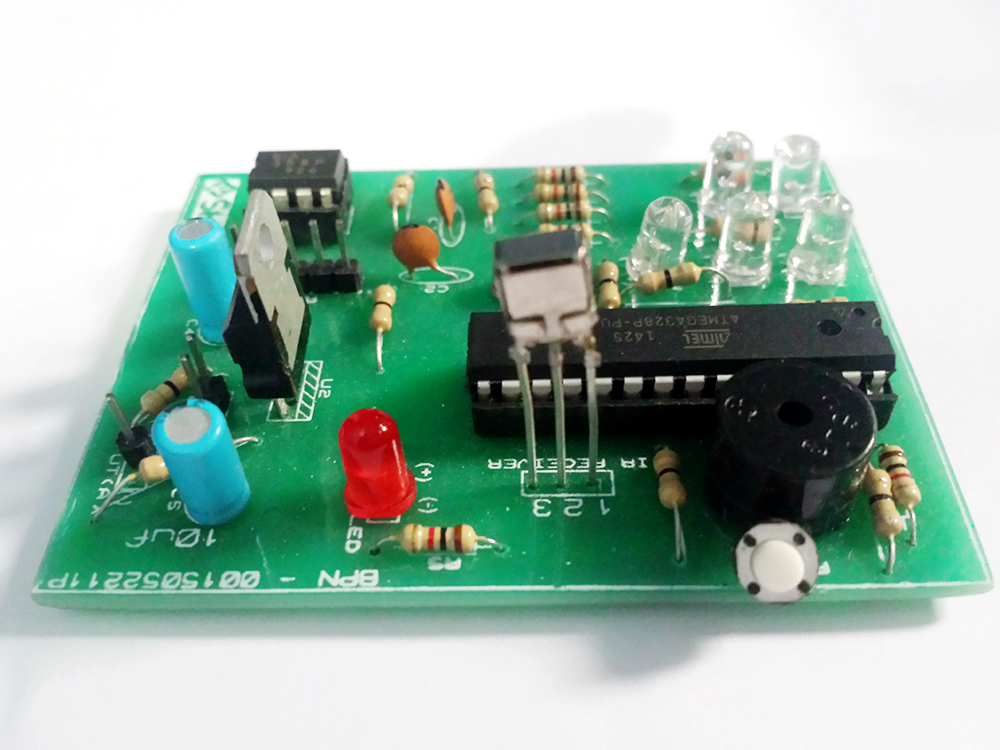

Remote Control Device V1.3.2
By: Shanjedul Hassan
User Guide for Remote control device

Features of this Device

  1. Use this device as a Remote Control Switch mode device.
  2. Use this device as a Timer Control Switch mode device.

Use this device as User/Selected Device

  1. 1st Turn on the control device by connected with power.
  2. When the top alone Red LED on, it means your device have power.
  3. Description: 320-350alt3_600

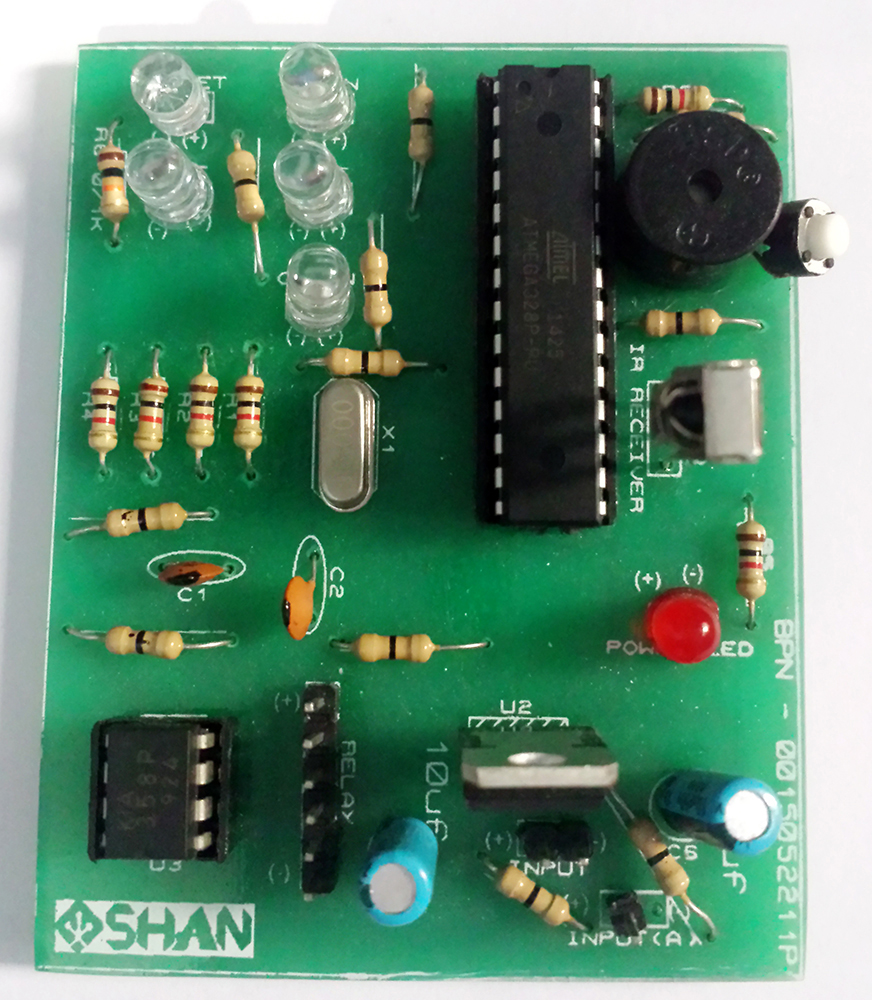

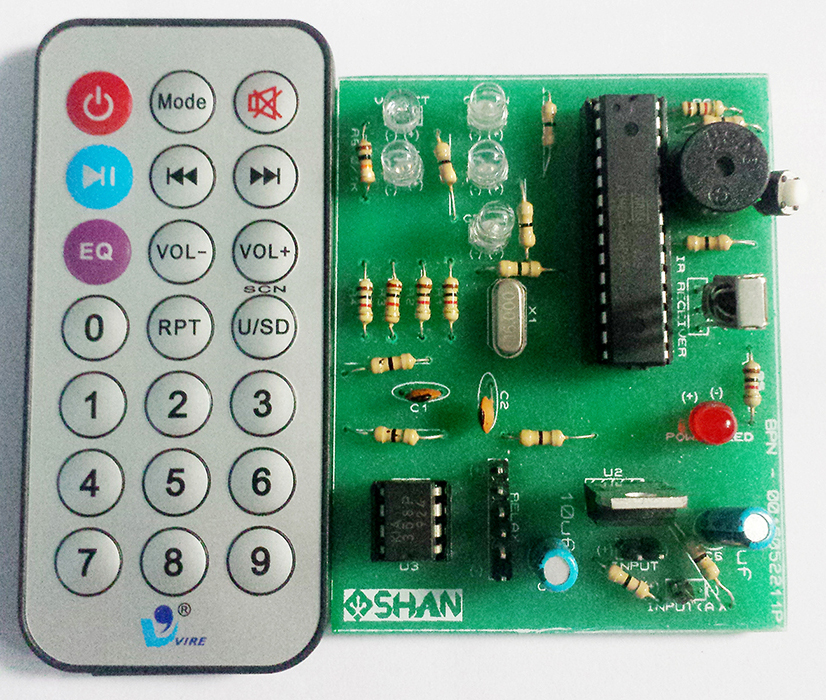

    Then press the “U/SD” (User or Selected Device) button from the remote you have.
  1. Then one Blue LED will on where two LED have in serial.
  2. Description: 320-350alt3_600
    Then press button between the numbers from 1 to 4.



  1. Press one number one time for on and again press the same number for off.
  2. The switch will on for unlimited time until user press for off.
  3. Press “U/SD” button again to make u/sd mode off.

Use the device as Timer Controller

  1. 1st Turn on the control device by connected with power.
  2. When the top alone Red LED on, it means your device have power.
  3. Description: 320-350alt3_600

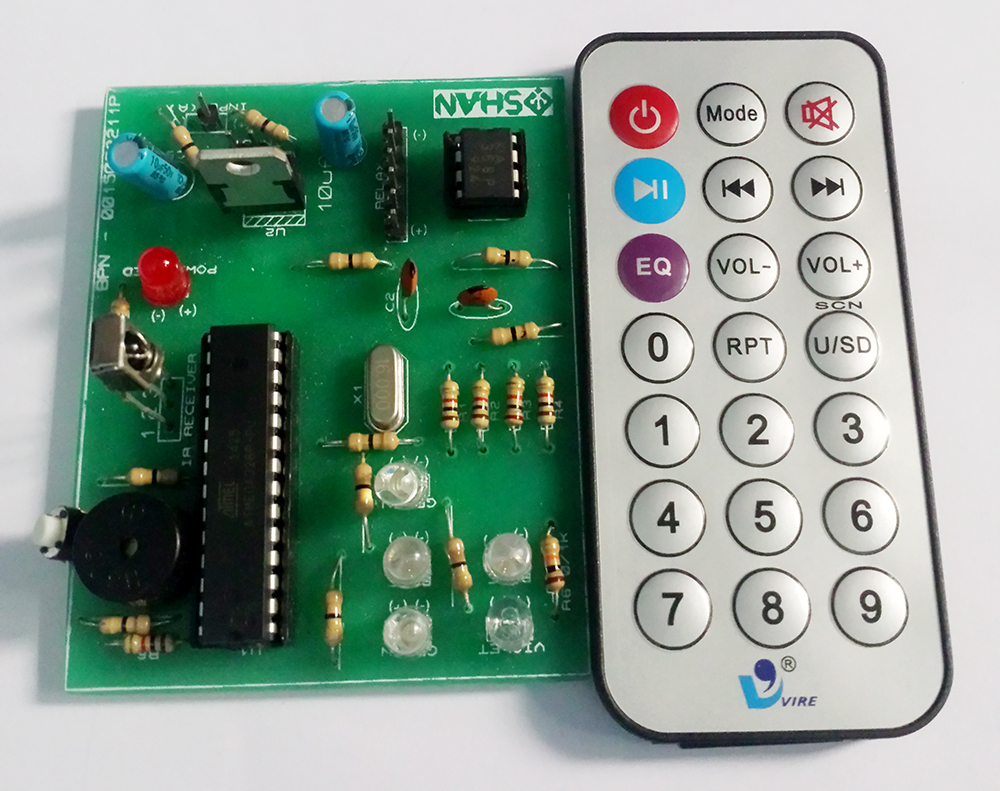

    Then press the “RPT” (Relay Play Time) button from the remote you have.
  4. Then one Violet LED will on for indicate that timer mode is on. And another Green LED show on for indicate to give first number.
  5. As a timer mode the controller need two digits for time. If you want to give 5 minute, you have to press 0 then 5. As an example 05 or 13 or 20 or 55.
  6. Description: 320-350alt3_600
    Then press one number from the remote to give first digit.  Then the Green LED will off and the second Blue LED will on.

  1. Then press another number button from remote to give the second number. Then the Blue LED will off and another Green LED will on for select the switch number.




  1. Then press a number from 1 to 4. That number switch will on for the time you gave.
  1. .When the time and switch is set, two Green and one Blue LED will on together.
  2. When the 1/3 time will finish first Blue LED will off. And one beep sound will give to inform the user that 1/3 of your time is spend.
  3. When the 2/3 time will finish the next Green LED will off. And give two beep to inform the user that 2/3 of your time is gone.
  4. When all the time will spend the device give three beep to inform the user. And all LED will off automatic.
  5. If you want to play again you have to press “RPT” again to on timer mode.
